RHD Under dash picture

[Rek]

Can anyone help me here? The dash on the left side of my RHD coupe was hanging down and I don't know where the fusebox and various relays are sited and how they are fixed.

Can someone with a RHD car take a photo of the area behind the glove box and post it so I can recreate mine.
Thanks in advance



[Aussiecsi]

Rek, tried to download pics to Forum but having computer "issues ". Send me a PM with your email address and will try to forward . My interior is stripped out save for the wiring so hopefully I can help with what you need . Cheers, Simon



[Simufly]

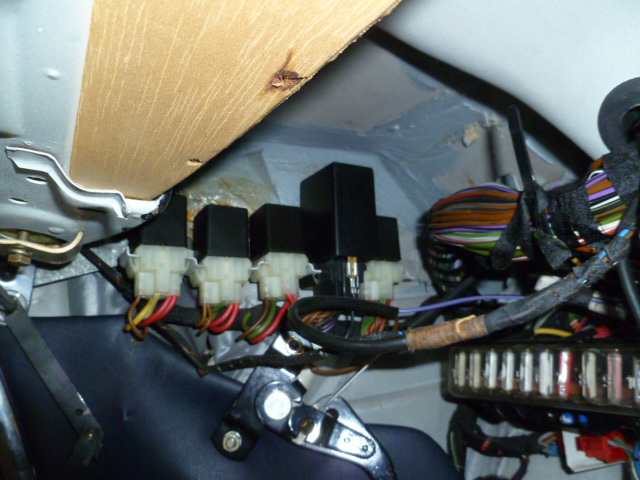

here you go



[Simufly]

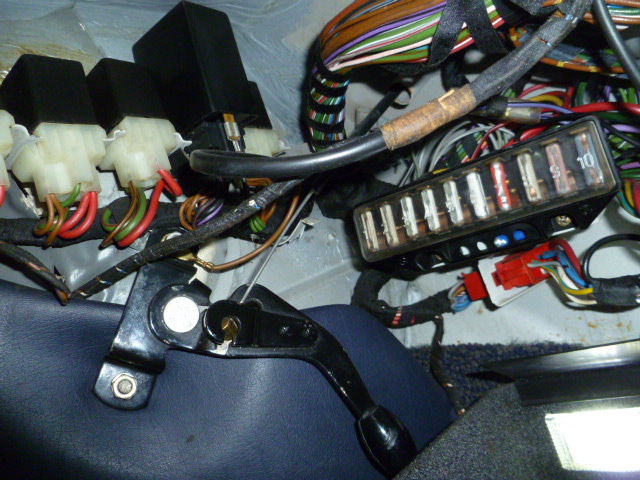

and a couple more



[Simufly]

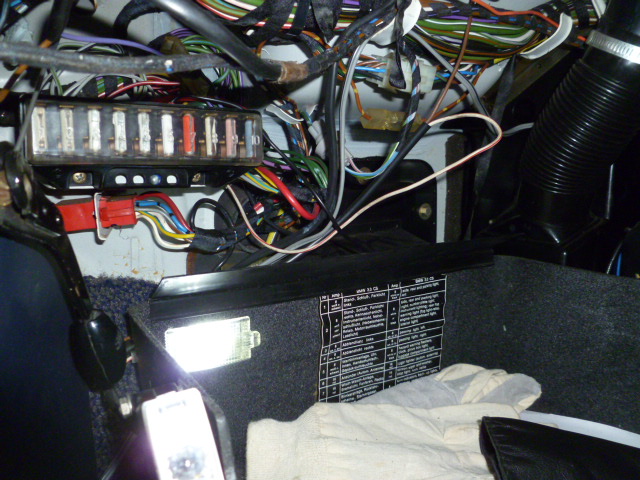

and another



[Rek]

Thats brilliant - thanks a lot.

Are all those relays standard or are they auxilliaries for the windows?



[Simufly]

Standard AFAIK. I do have leccy window all round though.
From memory the relays are wiper time delay, load shed and changeover for wipers.
